Features
WNC's WAVE® Cabinet uses WAVE® antennas to provide real-time inventory of stored items as well as identification of all items placed into or taken out of the cabinet. It features customizable software with an easy-to-use interface, enabling users to effortlessly view inventory, search for and store/remove items.
Sales Representatives: [email protected]
Software Features

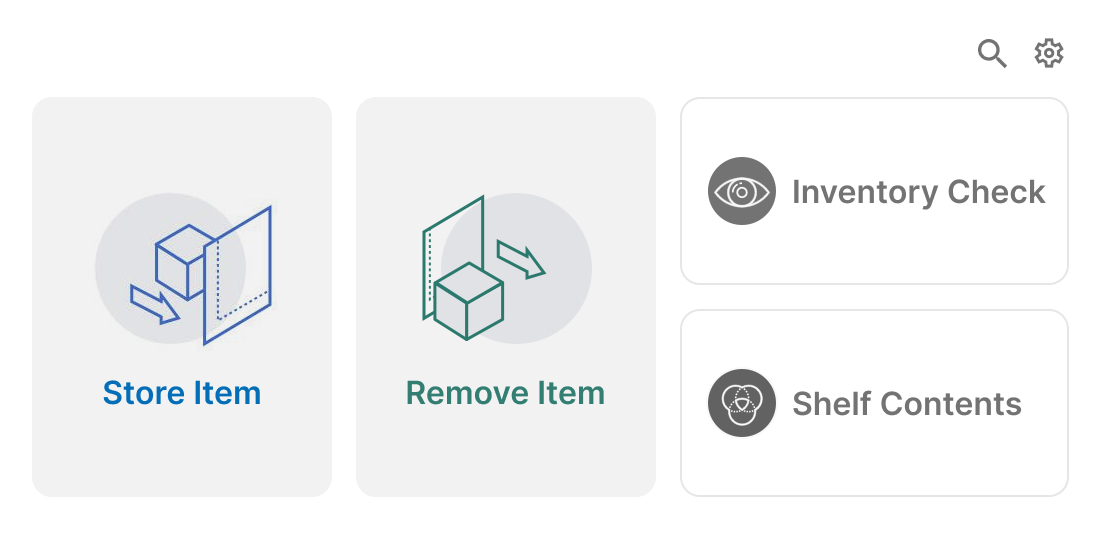

Customizable UI interface (sample interface shown here)
Key Features
User-friendly Interface
An intuitive, easy-to-use interface provides real-time anomaly alerts and enables easy operation and monitoring.
Automated Inventory Taking
This solution conducts regular inventory of stored items and sends alerts if any abnormality is detected. Data on when items are placed in or taken out, who performed the action, and the item quantity involved are also recorded.
Efficient Space Utilization
Adjustable, non-metallic shelving maximizes space utilization and minimizes RFID interference issues.
Specifications
| Model Name | XRBS-EC5 |
|---|---|
| Dimensions | Exterior: 150 cm (H) × 51.7cm (W) × 65.2 cm (D) |
| Material Composition (Exterior) | SPCC/SECC |
| Material Composition (Shelving) | PVC |
| Coating | Powder coating |
| No. of Shelves | 3 (adjustable) |
| User Interface | Touchscreen interface |
| Installation Requirements | 1. An 110V outlet and Ethernet port are required for installation 2. Install in indoor locations away from direct sunlight |
| Ambient Operating Temperature | 0 °C–40 °C (32 °F–104 °F ) |
